HOT Cone Crusher

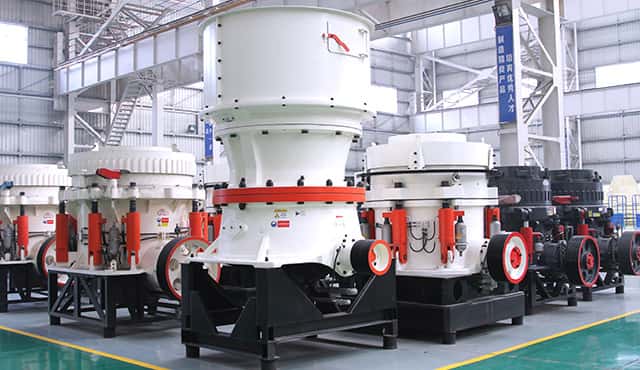

Cone Crusher

PLC & touch screen, real-time monitoring

Production capacity: 12-1000TPH
Feeding size: 65-300mm
Discharging size: 3-60mm

Factory Price 100%
Response Time <24h

Video

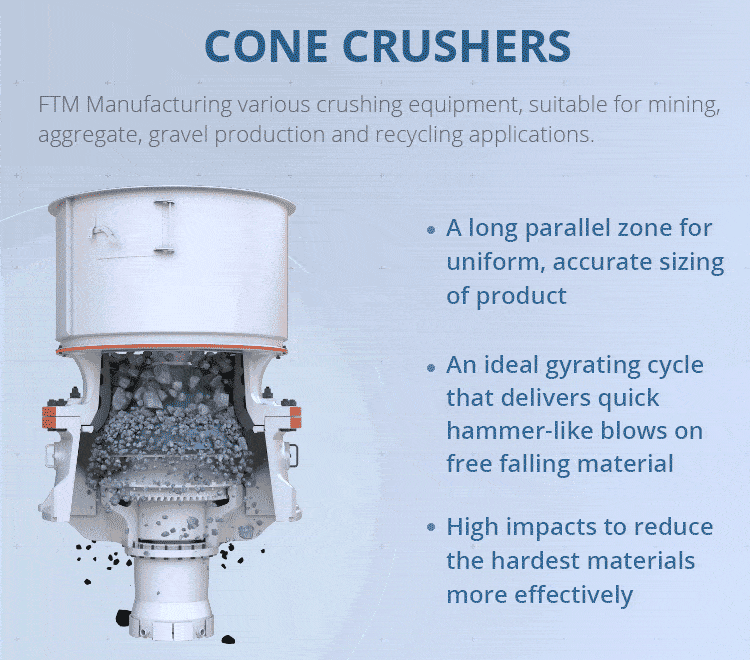

There are four kinds of FTM cone crusher: respectively Hydraulic cone crusher, Multi-cylinder hydraulic cone crusher, Single-cylinder hydraulic cone crusher and Symons cone crusher.

Chat for Price and Details

160 agencies around world

Case Study

Dedicated to providing best solutions and turnkey projects for 5 million+ customers.

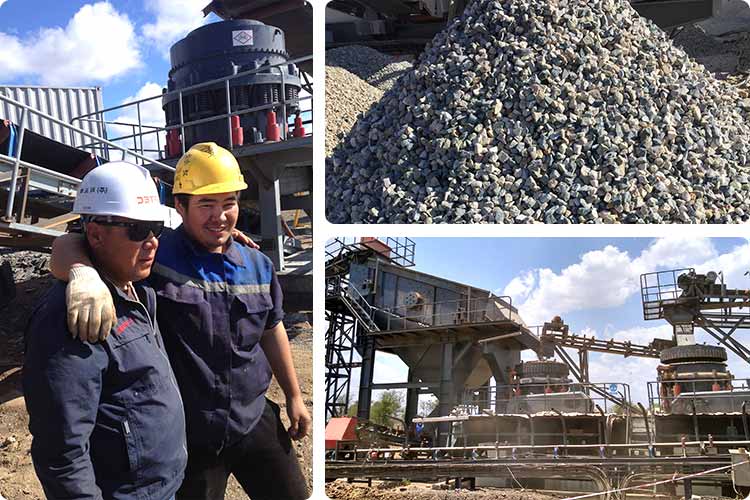

180tph Cone Crusher for Brazil Customer Mlago

The cone crusher is used to process limestone with size of 250mm into 50mm aggregates. This cone crusher plays an important role in the stone crushing plant, following by jaw crusher for secondary crushing.

Do you want to inquiry for Cone Crusher?

Technical Data

Technical parameters of SC series single cylinder hydraulic cone crusher:

Model	cavities	Maximum Feeding Size(mm)	Minimum Discharging Size(mm)	install Power(kw)	capacity(t/h)
SC(S)100	C1	250	22	90	85-170
SC(S)100	C2	200	19	90	70-130
SC(S)160	C1	360	25	160	125-345
SC(S)160	C2	300	22	160	108-305
SC(S)250	C1	450	35	250	267-605
SC(S)250	C2	400	29	250	225-515
SC(S)315	C1	560	41	315	349-1050
SC(S)315	C2	500	38	315	318-892

SC-S series of single cylinder hydraulic cone crusher parameters:

Model	cavities	Maximum Feeding Size(mm)	Minimum Discharging Size(mm)	install Power(kw)	capacity(t/h)
SC100	F1	150	10	90	45-135
	F2	90	10	90	43-118
	F3	50	6	90	36-71
SC160	F1	200	13	160	69-215
	F2	115	10	160	57-184
	F3	75	8	160	63-126
SC250	F1	215	16	250	116-396
	F2	140	13	250	97-328
	F3	70	8	250	95-252
SC315	F1	275	16	315	177-662
	F2	175	16	315	162-552
	F3	85	13	315	195-401
SC560	F1	300	22	560	448-1512
	F2	195	19	560	380-1373
	F3	90	13	560	357-912
SC750	F1	370	25	750	394-2181
	F2	300	19	750	342-2020
	F3	230	16	750	267-1814
	F4	120	13	750	248-1165
	F5	85	10	750	185-1170
