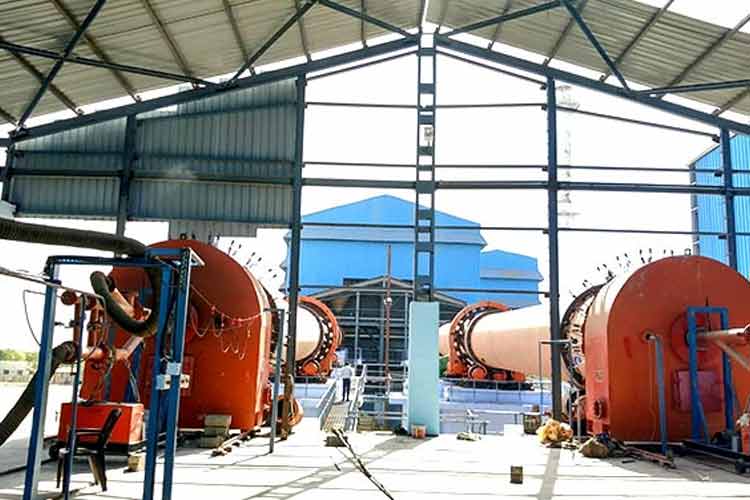

100t/h Rotary Dryer For Coal Slime in Oman
This rotary dryer can be widely used for industries of mining, ore beneficiation, construction materials and chemical engineering. It can not only deal the coal slime, but also can process materials like raw coal, flotation clean coal, mixing clean coal, etc. If interested in and want to know more details? click form to enter
Technical Data
|
Spec./m
(Dia.×Length)
|
Shell Cubage
(m³)
|
Capacity
(t/h)
|
Installation
Obliquity
(%)
|
Highest Inlet
Air Temperature
(℃)
|
Main Motor
(kw)
|
Weight
(t)
|
|
Φ1.2×8.0
|
9.0
|
1.9～2.4
|
3～5
|
700～800
|
7.5
|
9
|
|
Φ1.2×10
|
11.3
|
2.4～3.0
|
3～5
|
700～800
|
7.5
|
11
|
|
Φ1.5×12
|
21.2
|
4.5～5.7
|
3～5
|
700～800
|
15
|
18.5
|
|
Φ1.5×14
|
24.7
|
5.3～6.6
|
3～5
|
700～800
|
15
|
19.7
|
|
Φ1.5×15
|
26.5
|
5.7～7.1
|
3～5
|
700～800
|
15
|
20.5
|
|
Φ1.8×12
|
30.5
|
6.5～8.1
|
3～5
|
700～800
|
18.5
|
21.5
|
|
Φ1.8×14
|
35.6
|
7.6～9.5
|
3～5
|
700～800
|
18.5
|
23
|
|
Φ2.2×12
|
45.6
|
9.7～12.2
|
3～5
|
700～800
|
22
|
33.5
|
|
Φ2.2×14
|
53.2
|
11.4～14.2
|
3～5
|
700～800
|
22
|
36
|
|
Φ2.2×16
|
60.8
|
13.0～16.2
|
3～5
|
700～800
|
22
|
38
|
|
Φ2.4×14
|
63.3
|
13.5～16.9
|
3～5
|
700～800
|
37
|
45
|
|
Φ2.4×18
|
81.4
|
17.4～21.7
|
3～5
|
700～800
|
37
|
49
|
|
Φ2.4×20
|
90.4
|
19.3～24.1
|
3～5
|
700～800
|
45
|
54
|
|
Φ2.4×22
|
99.5
|
21.2～26.5
|
3～5
|
700～800
|
45
|
58
|
|
Φ2.6×24
|
127.4
|
27.2～34.0
|
3～5
|
700～800
|
55
|
73
|
|
Φ3.0×20
|
141.3
|
30.1～37.7
|
3～5
|
700～800
|
75
|
85
|
|
Φ3.0×25
|
176.6
|
37.7～47.1
|
3～5
|
700～800
|
75
|
95
|
|
Φ3.2×25
|
201
|
42.9～53.6
|
3～5
|
700～800
|
90
|
110
|
|
Φ3.6×28
|
285
|
60.8～76.0
|
3～5
|
700～800
|
160
|
135
|
Technical parameters of indirect heat dryer:
Shell
diameter
×shell
Length
Items |
Inside
diameter
of outer
shell
(mm) |
Inside
diameter
of inner
shell
(mm) |
Shell
Length
(m) |
Shell
cubage
(m³) |
Shell
obliquity |
Lifting
blade
form |
Highest
inlet air
temperature
(℃) |
Dimensions
(m) |
| Φ1.5×15m |
1500 |
500 |
15 |
20.27 |
3-5% |
Lifting form |
850 |
16.2×2.7×2.7 |
| Φ1.5×17m |
17 |
22.97 |
18.2×2.7×2.7 |
| Φ1.5×19m |
19 |
25.68 |
20.0×2.9×2.9 |
| Φ1.8×21m |
1800 |
650 |
21 |
35.91 |
3-5% |
Lifting form |
850 |
22.5×2.7×2.7 |
| Φ1.8×23m |
23 |
39.33 |
24.5×2.9×2.9 |
| Φ1.8×25m |
25 |
42.75 |
26.5×2.9×2.9 |
| Φ2.2×21m |
2200 |
800 |
21 |
58.10 |
3-5% |
Lifting form |
850 |
---- |
| Φ2.2×23m |
23 |
63.61 |
| Φ2.2×25m |
25 |
69.15 |
