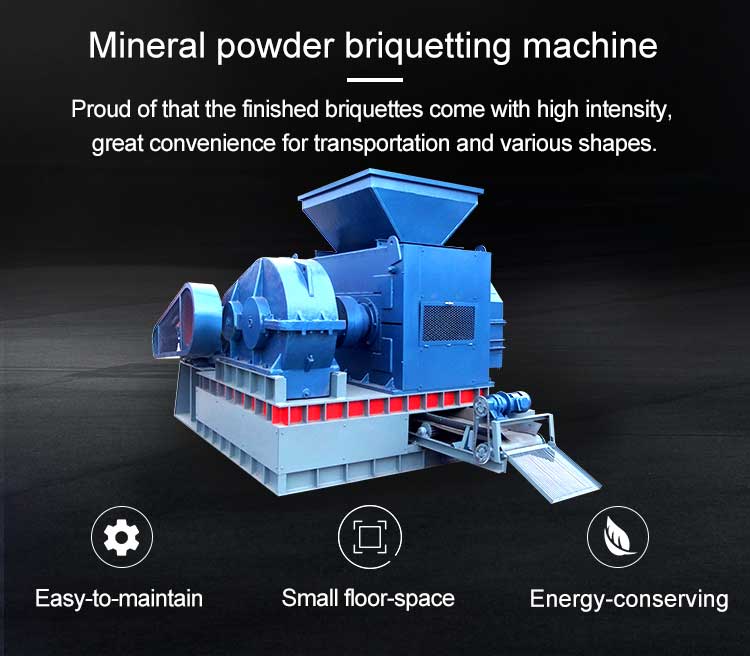

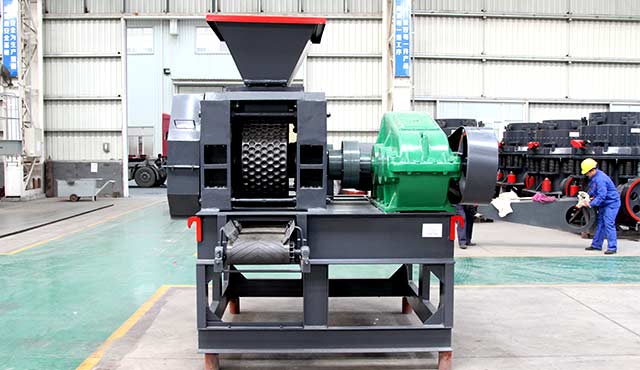

Mineral Powder Briquetting Machine

Make Mineral Powder Easy to be Used and Transferred

Production capacity: 4-70TPH
Power: 7.5-30kw
Materials: Mineral powder, metal powder, coal powder, coke powder, iron, ore, iron oxide, slag, refractory and other materials.

Factory Price 100%
Response Time <24h

Video

Briquetting the mineral powder into briquettes, which are easy for storage, transportation and application. Have a try? telling us your raw material via following button and you will receive the price

Chat for Price and Details

160 agencies around world

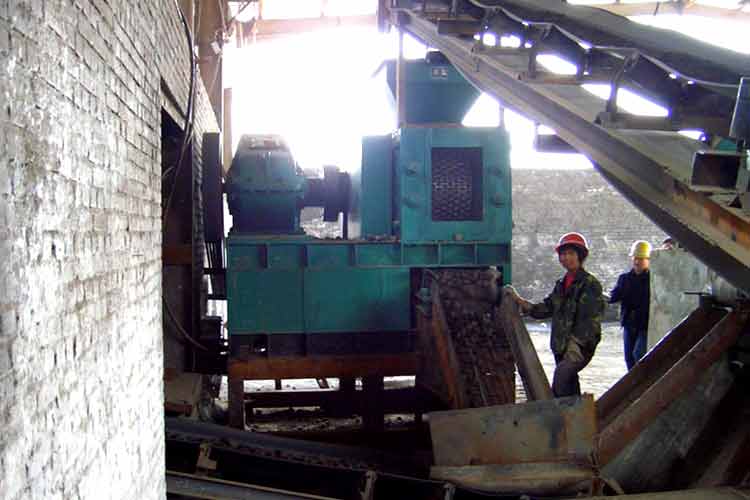

Case Study

Dedicated to providing best solutions and turnkey projects for 5 million+ customers.

Make Mineral Powder Into easy-to-deliver Briquettes

More and more customers choose to work with FTM brand for mineral powder briquetting machine. It is so popular, not only because of the high briquetting ratio and great quality, but also because of the service. Before-sales service, sales service and after-sales service, all in system

Do you want to inquiry for Mineral Powder Briquetting Machine?

Technical Data

Model	Roll diamter （mm）	Roll width （mm）	Total pressure （t）	Main motor power （kw）	Output （t）	Weight （t）
GY520-150	520	196	150	55	2.2-3.5	13
GY650-220	650	200	220	110	4-6.5	19.2
GY750-300	750	280	300	185	6-8.5	34
GY1000-350	1000	440	350	250	10-15	50.8
GY1000-450	1000	504	450	280	14-17	58.5
GY1000-500	1000	504	500	315	15-20	58.5
GYS1000-500	1000	600	500	280	17-21	56.5
GY1000-540	1000	900	540	185Kw×2	30-35	60
GY1200-800	1200	900	800	280Kw×2	40	110
GY1400-1000	1400	1000	1000	400Kw×2	50	156

Mineral Powder Briquetting Machine
