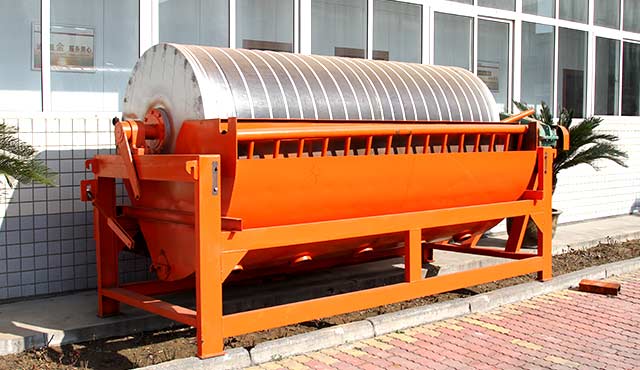

Magnetic Separator

Magnetic Separator

For separating ores with iron element inside

Production capacity: 10-280TPH
Feeding size: 0-3mm
Application Range: magnetite, pyrrhotite, roasted ore, ilmenite and other materials smaller than 3mm in wet-type magnetic separation process.

Factory Price 100%
Response Time <24h

Video

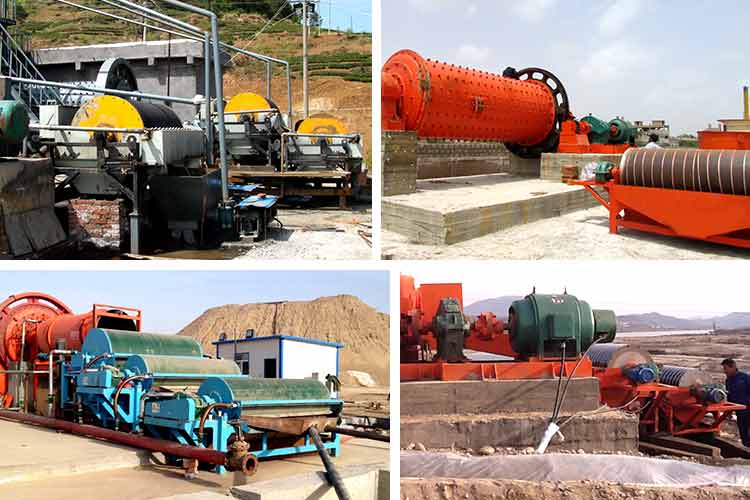

Working site of our magnetic separator in India. Magnetic separator is aiming at concentrating magnetite, pyrrhotite, roasted ore, ilmenite, etc. Want More details? See below

Chat for Price and Details

160 agencies around world

Case Study

Dedicated to providing best solutions and turnkey projects for 5 million+ customers.

Different Magnetic Separators in Different Lines

The capacity of magnetic separator is decided by that of whole flotation plant. We have many types there and different type has different price. Tell us your production situation and our sales will accord to your demands to select the best type for you.

Do you want to inquiry for Magnetic Separator?

Technical Data

Model	Shell diameter （mm）	Shell lenght （mm）	Shell rotation speed（r/min）	Feeding size （mm)	Processing capacoty （t/h）	Power（kw）
CTB6012	600	1200	<35	2-0	10-20	1.5
CTB6018	600	1800	<35	2-0	15-30	2.2
CTB7518	750	1800	<35	2-0	20-45	2.2
CTB9018	900	1800	<35	3-0	40-60	3
CTB9021	900	2100	<35	3-0	45-60	3
CTB9024	900	2400	<28	3-0	45-70	4
CTB1018	1050	1800	<20	3-0	50-75	5.5
CTB1021	1050	2100	<20	3-0	50-100	5.5
CTB1024	1050	2400	<20	3-0	60-120	5.5
CTB1218	1200	1800	<18	3-0	80-140	5.5
CTB1224	1200	2400	<18	3-0	85-180	7.5
CTB1230	1200	3000	<18	3-0	100-180	7.5
CTB1530	1500	3000	<14	3-0	170-280	11
