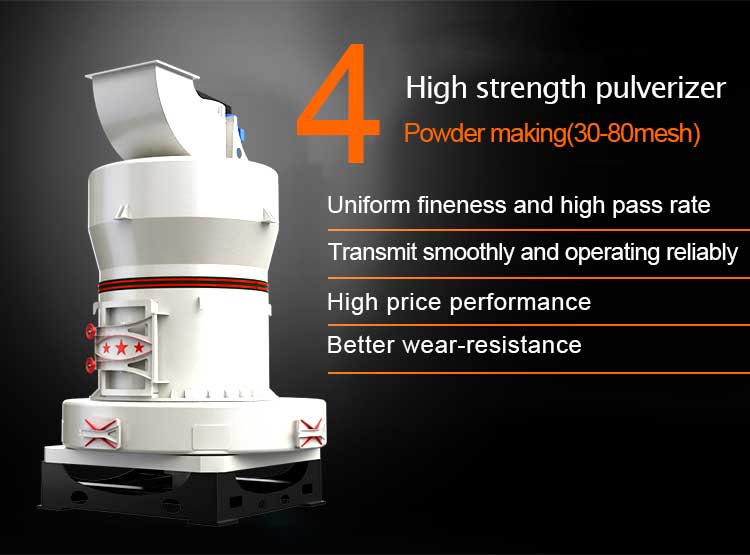

High Strength Pulverizer

High Strength Pulverizer

Powder making(30-80mesh)

Production capacity: 2-176TPH
Feeding size: ≤25-≤30mm
Discharging size: 0.125-0.044mm

Factory Price 100%
Response Time <24h

Video

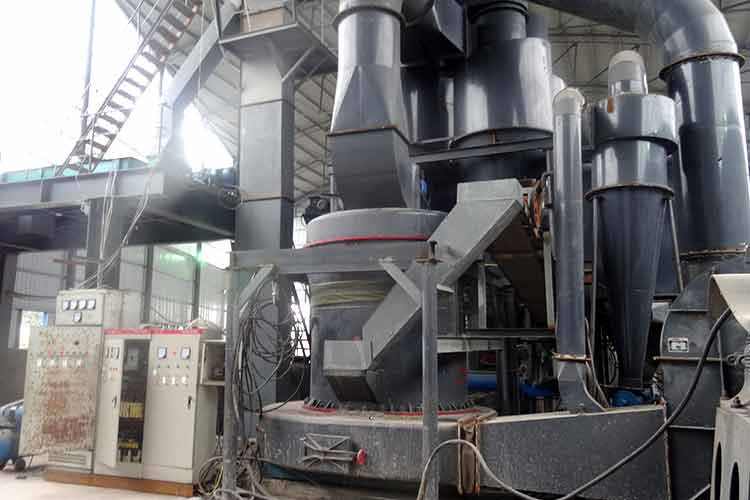

Sucessfully, a high-strength pulverizer is installed well in Iran for Talc powder making. The whole working environment is clean, since our engineers equip the whole machine with dust collector.

Chat for Price and Details

160 agencies around world

Case Study

Dedicated to providing best solutions and turnkey projects for 5 million+ customers.

120t/h High Strength Pulverizer in India

This strength pulverizer can process the materials from size of 15-30mm to 80-425mesh. It can process materials like barite, calcaite, feldspar, talc, marble, limestone, dolomite, and fluorite, etc. What materials you want to process? tell us online and we can design a flow chart free for you.

Do you want to inquiry for High Strength Pulverizer?

Technical Data

Parameter Model	Raymond mill62	High strength66	High strength76	High strength87	High strength92	High strength93	High strength97	Raymond mill4119	Raymond mill4525
Feeding size（mm）	<15	<15	<20	<25	<25	<25	<25	≤25	≤30
Size of finished product（mm）	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.044	0.173-0.044
Shift output of different material fineness(t)	0.6-9	1-20	1.5-25	2.8-33	3-36	3.5-40	4-52	8-78	16-176
Rotate speed of central shart（r/min）	274	190	170	161	148	140	130	105	82
Diameter of pulverizing ring（mm）	525	725	850	907.5	973	1006	1050	1400	1770
Diameter of pulverizing ring（mm）	150	210	250	270	300	300	310	410	450
Height of pulverizing roller（mm）	100	150	150	150	160	160	170	190	250
Main Motor	7.5	15	18.5	22	30	30	37	75	132
Fan Motor	4-5.5	4-11	4-15	4-18.5	4-22	2-22	4-37	4-75	4-132
Analyzer Motor	6-1.1	6-2.2	6-2.2	6-2.2	6-2.2	6-3	4A-5.5	4B-7.5	4A-18.5
