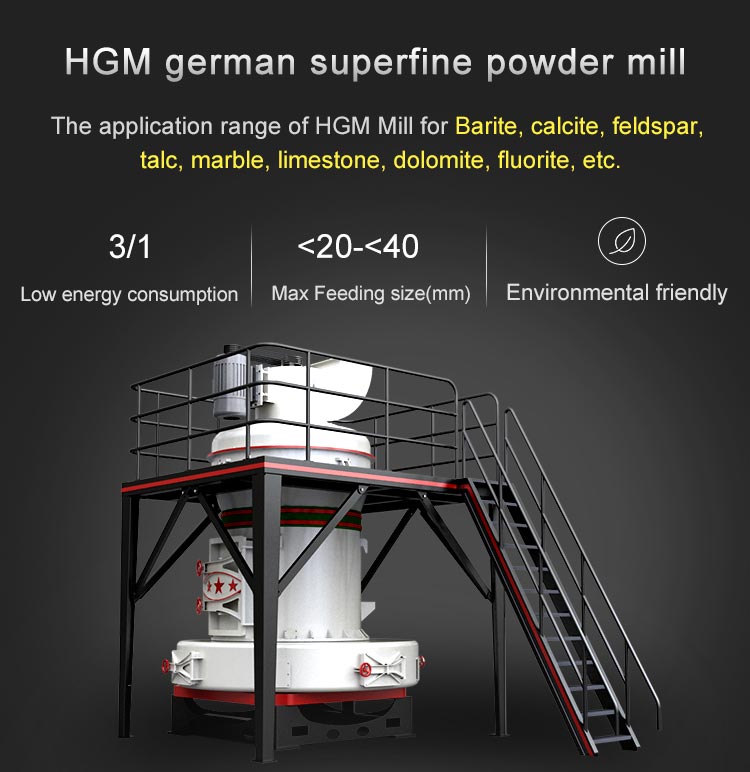

HGM German Superfine Powder Mill

HGM German Superfine Powder Mill

Powder making 80-1250mesh

Production capacity: 30-800kg/h
Feeding size: ≤25m
Inlet size: 425-3250mesh

Factory Price 100%
Response Time <24h

Video

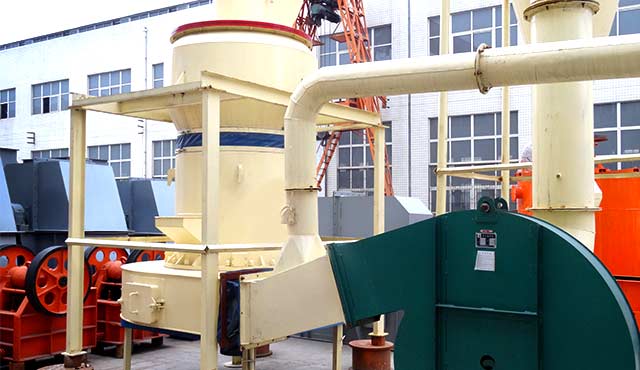

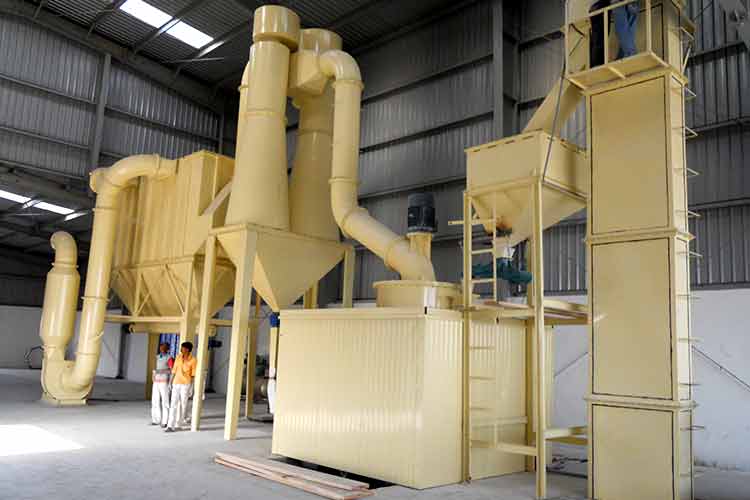

Customer site of HGM german superfine mill for powder making by processing materials like talc, dolomite, feldspar, etc. If you want to know more details, please leave us a message or send emails to us. Thank you!

Chat for Price and Details

160 agencies around world

Case Study

Dedicated to providing best solutions and turnkey projects for 5 million+ customers.

50t/h HGM Mill for Barite in Peru

Performance feedback: Roller device adopts the most advanced multi-stage sealing including mechanical air resistance sealing and overlapping sealing. Sealing performance is good, which can lower the maintenance cost and prolong the lifespan of equipment. Want more details? chat online

Do you want to inquiry for HGM German Superfine Powder Mill?

Technical Data

Model	HGM88	HGM95	HGM 100	HGM120	HGM130	HGM138	HGM160	HGM175	HGM190
Feeding size（mm）	＜20	＜25	＜25	＜25	＜25	＜25	＜30	＜35	<40
Finished product size（mm）	0.25-0.015	0.25-0.015	0.25-0.015	0.25-0.015	0.25-0.038	0.25-0.038	0.25-0.038	0.25-0.038	0.25-0.038
Processing capacity（t/h）	0.4-5	0.6-7	0.8-10	1.2-15	1.6-21	2-25	2.7-28	3-35	5-40
Central shaft rotate speed（r.min）	167	150	142	136	105	92.5	82	75	74
Diameter of pulverizing ring（mm）	908	1006	1075	1280	1400	1510	1770	1900	2040
Number Of pulverizing roller	3	3	3	3	4	4	5	5	4
Main motor power（kw）	22	30	45	55	75	90	132	185	280
Fan motor power（kw）	22	30	45	75	90	110	160	200	280
Analyzer motor power（kw）	5.5	7.5	11	15	18.5	22	22/30	30/45	55
