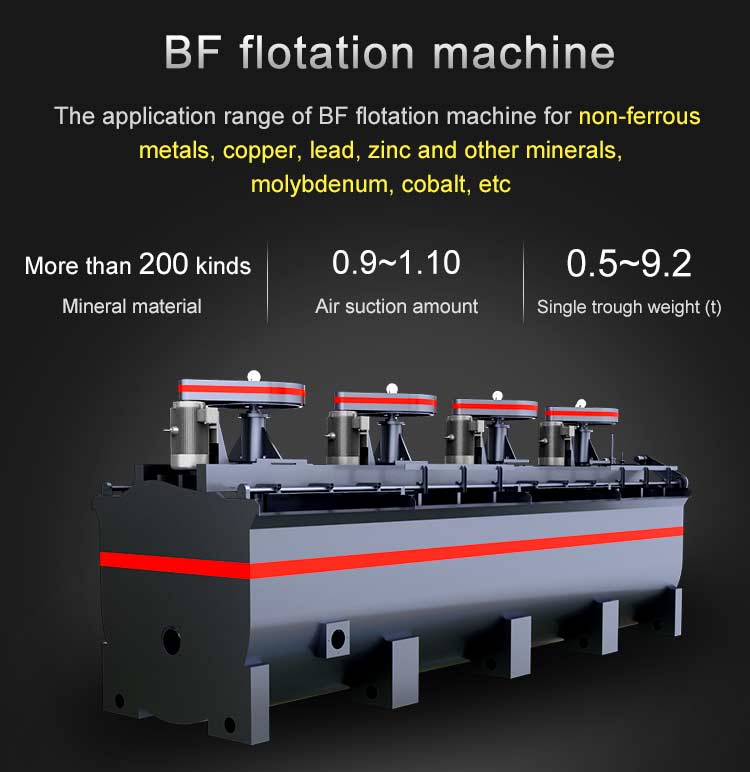

BF Flotation Machine

BF Flotation Machine

Upgrade version of SF type

Production capacity: 0.2–20 m³/min
Powder: 1.1-37kw
Materials: Non-ferrous metal minerals such as copper, lead, zinc, molybdenum, cobalt, tungsten, antimony etc.

Factory Price 100%
Response Time <24h

Video

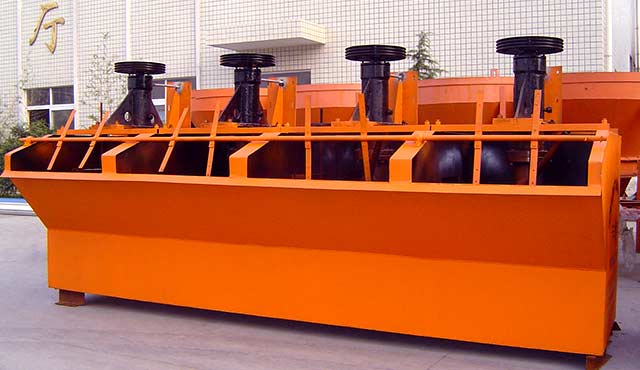

Manufacturing plant of flotation machine. As the TOP5 brand of ore processing machines in china, FTM has manufactured and exported flotation machines for more than 35 years. welcome your inquiry at any time

Chat for Price and Details

160 agencies around world

Case Study

Dedicated to providing best solutions and turnkey projects for 5 million+ customers.

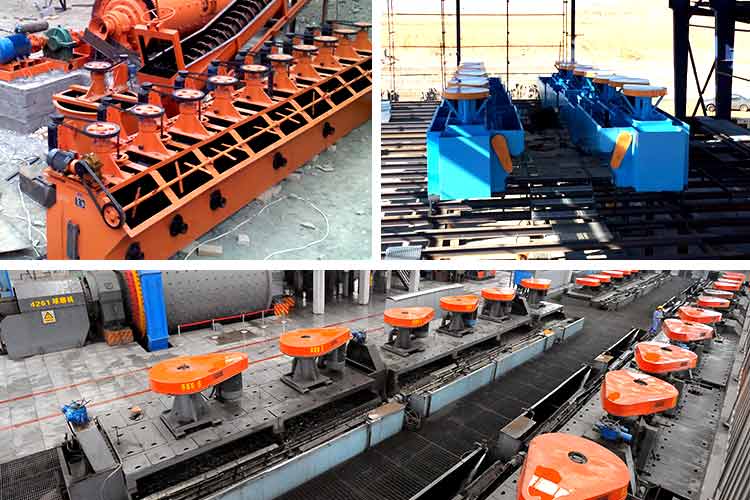

Flotation Cell with Different Capacity Used in Different Lines

If you want to know the details of flotation cell for increasing the concentration of materials? The capacity of flotation cell can reach to 50MT per day. The feeding size should be smaller than 100mesh and flotation cell is often used for non-ferrous materials like Copper, zinc, gold and manganese, etc. Waiting for your Inquiry.

Do you want to inquiry for BF Flotation Machine?

Technical Data

Category	Specification Model	Effective cubage （m³）	Processing capacity （m³/min）	Main shaft loam board				Dimensions (L×W×H) （m）	Single trough Weight （t）
Category	Specification Model	Effective cubage （m³）	Processing capacity （m³/min）	Power （kw）	Rotate speed （r/min）	Rotate speed （r/min）	Power （kw）	Dimensions (L×W×H) （m）	Single trough Weight （t）
XJK type flotation machine	XJK-0.35	0.35	0.18-0.4	1.5	483	25	1.1	0.7×0.7×0.7	0.5
	XJK-0.62	0.62	0.3-0.9	3.0	400	25	1.1	0.90×0.82×0.85	1.0
	XJK-1.1	1.1	0.6-1.6	5.5	330	25	1.1	1.1×1.1×1	1.4
	XJK-2.8	2.8	1.5-3.5	11	280	25	1.1	1.75×1.6×1.1	2.5
	XJK-5.8	5.8	5-7	22	240	25	1.5	2.2×2.2×1.2	3.6
SF type flotation machine	SF-0.37	0.37	0.2-0.4	1.5	386	25	1.1	0.7×0.7×0.75	0.5
	SF-0.7	0.7	0.3-0.9	3	400	25	1.1	0.9×0.82×0.95	1.0
	SF-1.2	1.2	0.6-1.6	5.5	330	25	1.1	1.1×1.1×1.1	1.9
	SF-2.8	2.8	1.5-3.5	11	268	25	1.1	1.75×1.6×1.15	2.6
	SF-4	4	2-4	15	220	25	1.5	1.85×2.05×1.2	2.9
	SF-8	8	4-8	30	191	25	1.5	2.2×2.9×1.4	4.2
	SF-10	10	5-10	30	191	25	1.5	2.2×2.9×1.7	4.5
	SF-20	20	5-20	30×2	191	25	1.5	2.85×3.8×2	9.9
JJF type flotation machine	JJF-2	2	1-3	7.5	443	25	1.5	1.4×1.4×1.1	1.7
	JJF-4	4	2-4	11	305	25	1.5	1.6×2.15×1.25	2.4
	JJF-8	8	4-8	22	233	25	1.5	2.2×2.9×1.4	4.5
	JJF-10	10	5-10	22	233	25	1.5	2.2×2.9×1.7	4.9
	JJF-16	16	5-16	30	180	25	1.5	2.85×3.8×1.7	8.0
	JJF-20	20	5-20	37	180	25	1.5	2.9×3.8×2.0	10.5
